Acknowledgements

PharmHub is built upon AddressBook-Level3 project created by the SE-EDU initiative.
The following libraries have been used

• JavaFX
• Jackson
• JUnit5

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

Tip: The .puml files used to create diagrams in this document docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command deletep 1.

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

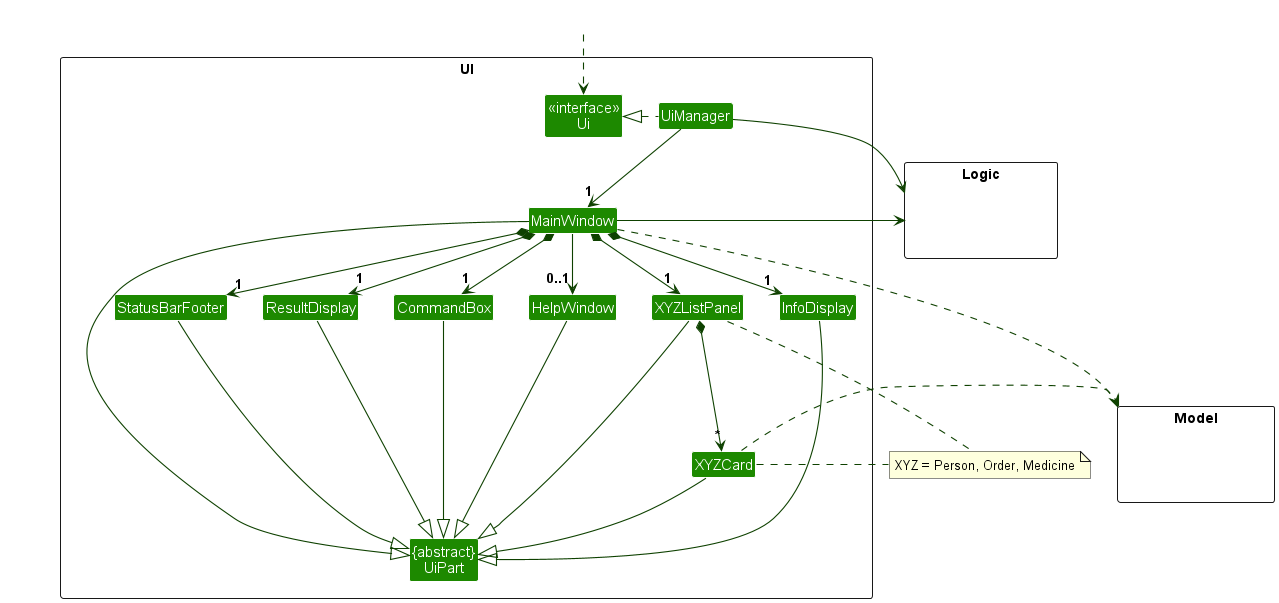

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

Here’s a (partial) class diagram of the Logic component:

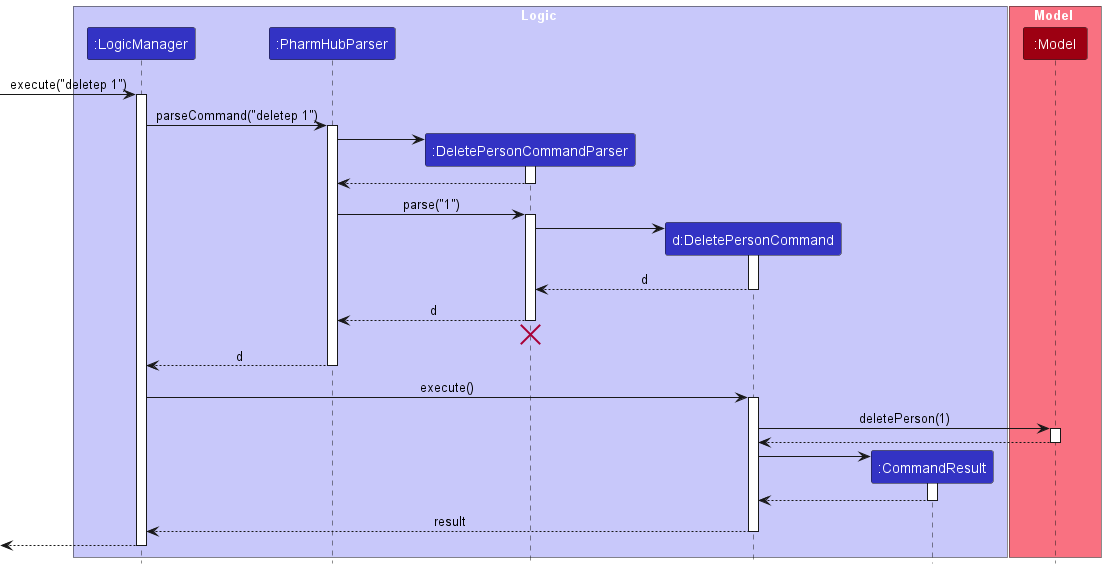

The sequence diagram below illustrates the interactions within the Logic component, taking execute("deletep 1") API call as an example.

Note: The lifeline for DeletePersonCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an PharmHubParser object which in turn creates a parser that matches the command (e.g., DeletePersonCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeletePersonCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the PharmHubParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddPersonCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddPersonCommand) which the PharmHubParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddOrderCommandParser, DeletePersonCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

The Model component,

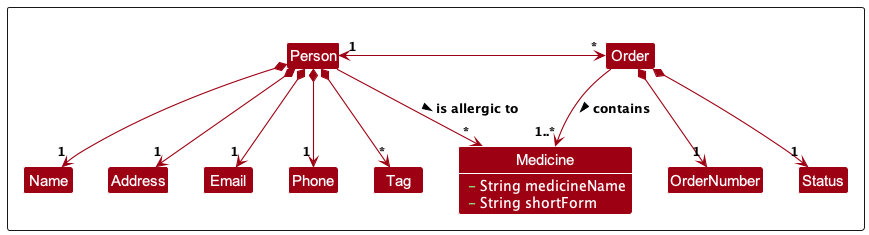

• stores the PharmHub data i.e., all Person, Order, and Medicine objects.
• stores the currently ‘selected’ Person, Order, Medicine objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

The Storage component,

• can save both PharmHub data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both PharmHubStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

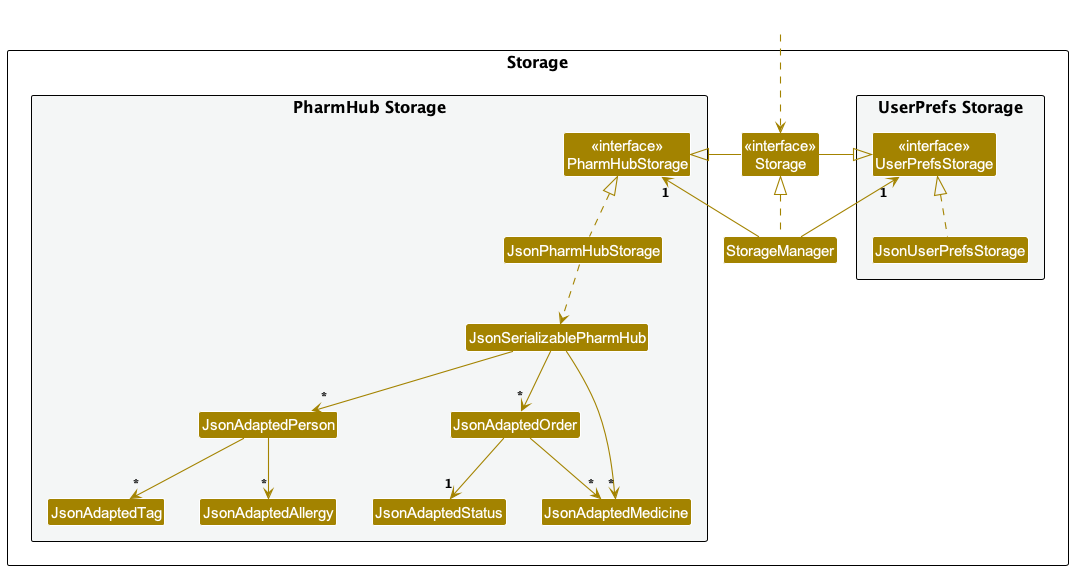

  • The Main Application has 3 JsonAdapted component in storage: JsonAdaptedPerson, JsonAdaptedOrder, JsonAdaptedMedicine.
    • JsonAdaptedPerson further contains JsonAdaptedTag and JsonAdaptedAllergy.
    • JsonAdaptedOrder further contains JsonAdaptedStatus and JsonAdaptedMedicine.`

Common classes

Classes used by multiple components are in the seedu.pharmHub.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

ListX feature

The listing functionality is supported by the listPanelPlaceholder in the Ui.

On start of application, two listPanels (PersonListPanel, OrderListPanel) are created, and person list panel is attached to the ListPanel Placeholder as default.

On execution of the any listing commands (listo or listp), the resultant CommandResult contains details on which panel to choose to display.

These are 3 different options for these details:

• Person - Panel will display list of people
• Order - Panel will display list of orders
• NoChange - Panel will keep whatever was there previously

Using these specifications, the CommandResult from executing listo and listp will inform the Ui of which panel to attach to the listPanelPlaceHolder

ViewX feature

The viewp/ viewo feature allows users to view details of a person/ order in the info display panel. This is facilitated with the new interface, InfoObject, which classes that want to be displayed are required to implement.

To support this feature, CommandResult has the field InfoObject. If present (not null), the UI will create and attach a view for that InfoObject onto the Info Display.

The code excerpt for MainWindow#handleDisplayInfo(InfoObject) below shows how the InfoDisplay is rendered:

    @FXML
    protected void handleDisplayInfo(InfoObject objectToDisplay) {
        assert(objectToDisplay instanceof Order || objectToDisplay instanceof Person);

        if (objectToDisplay instanceof Order) {
            Order order = (Order) objectToDisplay;
            OrderDisplay orderDisplay = new OrderDisplay(order);
            infoDisplay.attach(orderDisplay)
        } else if (objectToDisplay instanceof Person) {
            Person person = (Person) objectToDisplay;
            PersonDisplay personDisplay = new PersonDisplay(person);
            infoDisplay.attach(personDisplay)
        } else {
            throw new RuntimeException("Invalid object to display");
        }
    }

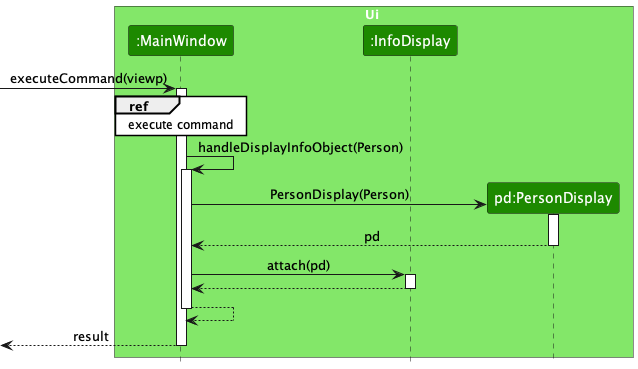

The following sequence diagram shows how the viewp operation works:

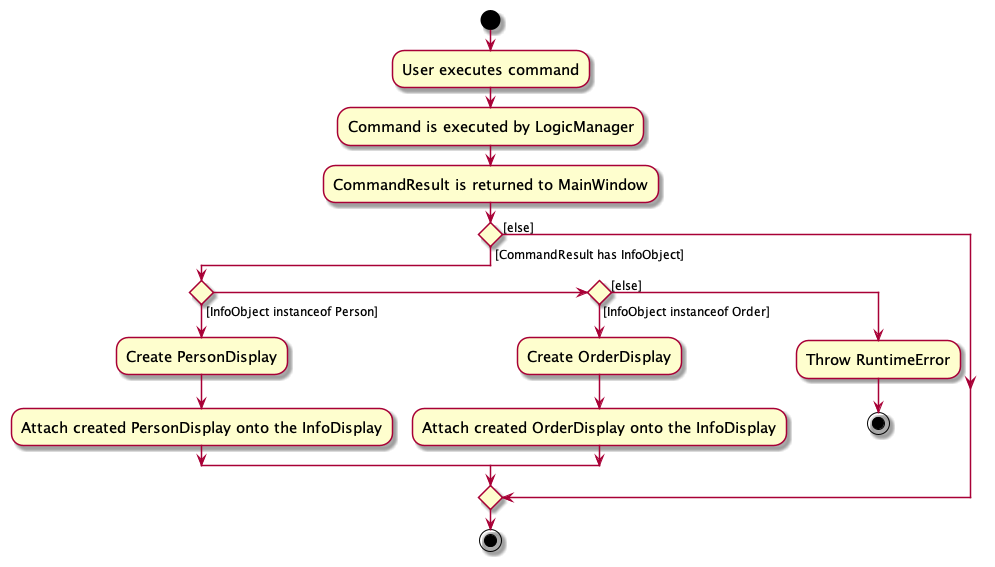

The following activity diagram summarizes what happens when a user executes a new command:

Note: As it currently stands in PharmHub, InfoObject can only be a Person or an Order.

Design considerations:

• Aspect: How the UI is informed about the object to display:

  • Alternative 1 (current choice): Require Classes that want to be displayed to implement InfoObject
    • Pros: Allows CommandResult to contain a uniform type (InfoObject), which scales easily. Also gives control over which classes can be displayed, and which classes cannot (yet).
    • Cons: Empty InfoObject interface may lead to confusion for new developers.
  • Alternative 2: Have CommandResult contain all types of objects that we want displayed, ie Person and Order
    • Pros: Possibly clearer in intent
    • Cons: Not easily scalable

• Aspect: Creation of relevant InfoObject UI component:

  • Alternative 1 (current choice): If-else checks in MainWindow#handleDisplayInfo, and create the required UI component for each clause
    • Pros: Reduces coupling between Person (and Order) model and UI
    • Cons: Less scalable
  • Alternative 2: Create abstract method InfoObject#createUIComponent, and have Classes that wish to be displayed implement this method and create their own UI components
    • Pros: Easily scalable - each class implements their own UI display to attach into the placeholder
    • Cons: Increased coupling between UI and Model. UI-creation code exists inside the Person (or Order) Class

Edit person feature

Implementation

After adding a person in PharmHub, the user would be able to edit the person using the editp command with the following format:

editp INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [t/TAG]… [no/ALLERGY]…​ [ia/]

The command edits the person information based on the given fields. At least one field must be updated. Existing values will be replaced with the new input values. If the edits cause the person to be allergic to any orders associated with them, a warning will be raised. Using the ia/ flag will override this warning. This command cannot add or delete orders for this person. It’s limited to editing the person’s information only.

Prerequisite: There should be a person at index 1, with “Aspirin” in the PharmHub medicine list and also among one or more of his/her orders.

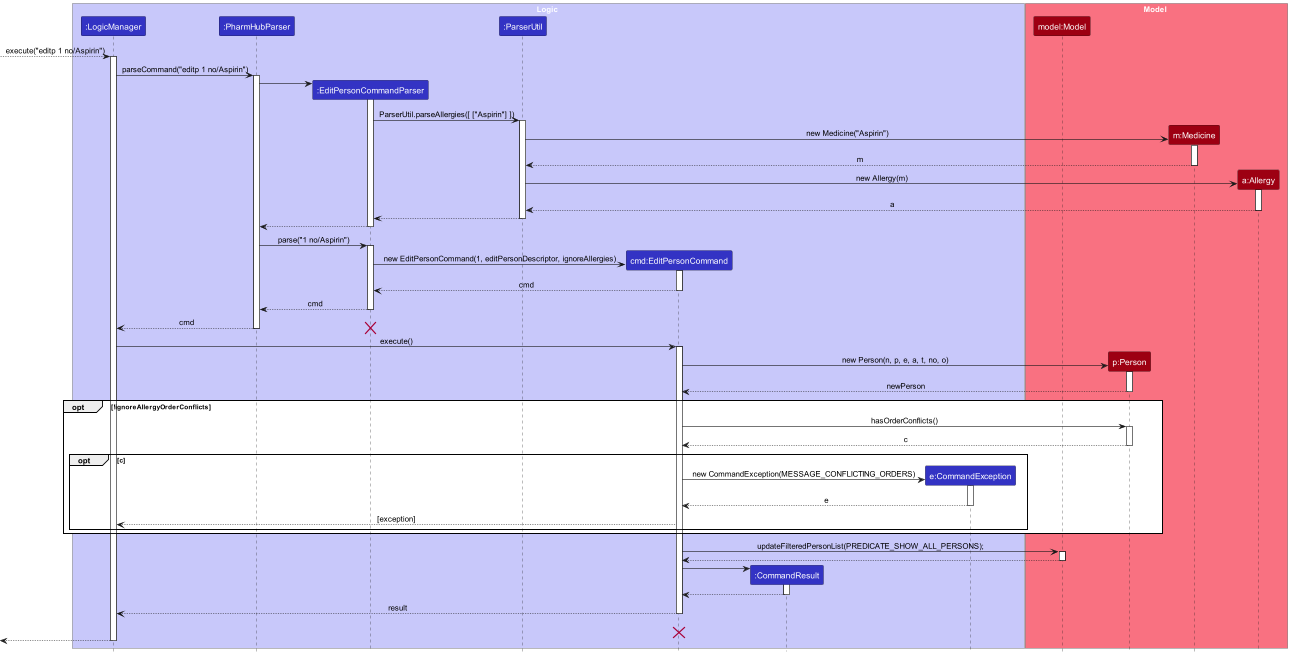

The following sequence diagram illustrates some of the steps that happen when user execute editp 1 no/Aspirin

Steps to trigger

Step 1: The user executes editp 1 no/Aspirin to add the allergy “Aspirin” to the person at index 1.

Step 2: Logic Manager calls PharmHubParser#parse which extracts the arguments and calls EditPersonCommandParser.

Step 3: EditPersonCommandParser parses the index and the allergy and returns an EditPersonCommand.

Step 4: LogicManager calls EditPersonCommand#execute to edit the details of the person.

Step 5: Since an allergy is added in this command, and an ia/ flag is not passed as an argument, EditPersonCommand checks among the list of order of the person whether there are any medications that match this allergy by calling the hasOrderConflict() function.

Step 6: Since there are medications that match this allergy, a CommandException is returned.

Step 7: An error message is shown to warn the user that the person’s new allergy conflicts with existing orders, and hints the user about adding the ia/ flag to add the allergy to the person anyway.

EditPersonCommand#execute utilizes the following method Person#hasOrderConflicts to check if there are any conflicts between the person’s allergy and his/her orders.

    public boolean hasOrderConflicts() {
        return orders.stream().anyMatch(o -> isAllergicToAny(o.getMedicines()));
    }

}

Person#isAllergicToAny(medicines) returns true if the person is allergic to any of the given medicines.

    public boolean isAllergicToAny(Set<Medicine> medicines) {
        return medicines.stream().anyMatch(medicine -> isAllergicTo(medicine));
    }

Add medicine short form feature

Implementation

After the creation of new Medicine, a short form can be assigned to that Medicine using the sfm command.
After this command, the user would be able to use this short form interchangeably with the full name in fields requiring medicine or allergy names.
Currently, only one short form can be assigned to one Medicine at a time.

Steps to trigger

Step 1: The User launches the application. Step 2: The user executes sfm 1 m/pan to add the short form of pan to the medicine at index 1 in the last shown medicine list.
Step 3: Logic Manager calls PharmHubParser#parse which extracts the arguments and calls ShortFormCommandParser
Step 4: ShortFormCommandParser parses the index, short form name and returns a ShortFormComamnd
Step 5: LogicManager calls ShortFormCommand#execute to assign the short form to the medicine.
Step 6: ShortFormCommand checks if an existing medicine with the same name or same short form is already present using Model#hasMedicine(m).
Step 7: The Medicine at index 1 is replaced with a new Medicine which has same medicine name but with pan as the short form.

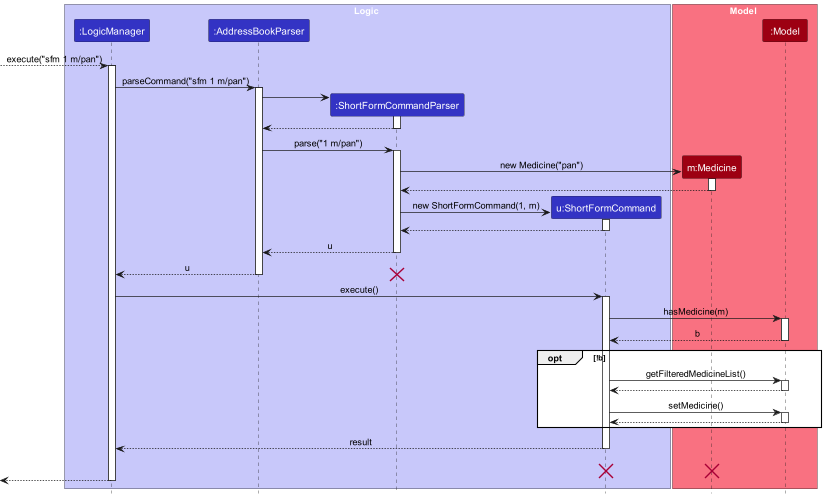

The following sequence diagram illustrates some of the steps that happen when user execute sfm 1 m/pan

Note: The lifelines should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Model#hasMedicine(m) utilizes the following method Medicine#isSameMedicine to check equality of two Medicine.

public boolean isSameMedicine(Medicine m) {
        if (m == this) {
            return true;
        }
        if (m == null) {
            return false;
        }
        return (medicineName.equalsIgnoreCase(m.medicineName)
                || medicineName.equalsIgnoreCase(m.shortForm)
                || m.medicineName.equalsIgnoreCase(shortForm));
}

Delete medicine short form feature

Implementation

sfm can also be used to delete the short form of a medicine by providing the d/ flag. If the d/ flag is provided any provided medicine names using m/ will be ignored.
Hence sfm 1 m/pan d/ will be treated as deleting the short form of medicine at index 1 in the last shown medicine list.

Steps to trigger

Given below is an example scenario to delete the short form of medicine at index 1.

Step 1. The user lists all medicines using the listm command.
Step 2. The user deletes the medicine at 1st index using sfm 1 m/pan d/
Step 3: Logic Manager calls PharmHubParser#parse which extracts the arguments and calls ShortFormCommandParser
Step 4: ShortFormCommandParser parses the index, ignores the short form and returns a ShortFormComamnd
Step 5: LogicManager calls ShortFormCommand#execute to delete the short form of medicine at index 1.
Step 6: The Medicine at index 1 is replaced with a new Medicine which has same medicine name but with no short form.

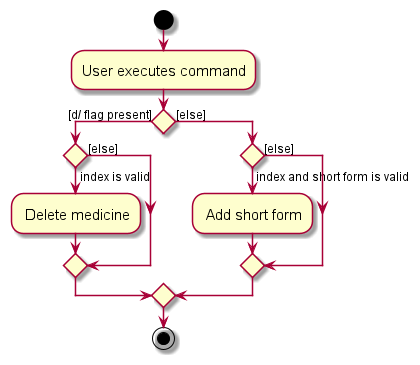

The following activity diagram summarises the sequence of steps for the whole sfm command.

Adding an Order feature

Implementation

The adding an Order feature allows the user to add an order to a person.

1. The add order feature includes the ignore allergy flag to allow further flexibility for the pharmacist when assigning orders to people. This is because they may have other considerations when it comes to assigning a medication for a person.
2. The add order feature do not allow duplicated order as we believe that each order should be distinct base on their order number, ensuring that no orders go missing or forgotten.

Steps to Trigger

1. The User launches the application.
2. The User executes “addo 1 m/aspirin o/1” to add a new order.
3. The AddOrderParser#parse() checks whether all the prefixes and the required values are provided.
4. If the check is successful, the ParseUtil#parseOrderNumber, ParseUtil#parseOrderNumber and ParseUtil#parseMedicine will then check and create an Index, OrderNumber and Medicine passing it to AddOrderCommand.
5. Depending on whether an ignore allergy flag ia/ is added in the command input, user can input medications in the order that the person is allergic to.
6. AddOrderCommand#execute then checks if the person exist base on index and creates an Order with the person, orderNumber, medicine and a PENDING Status, then Model#hasOrder also checks whether the order is a duplicated order.
7. If the order does not exist, then the Model#addOrder adds the order into the order list.

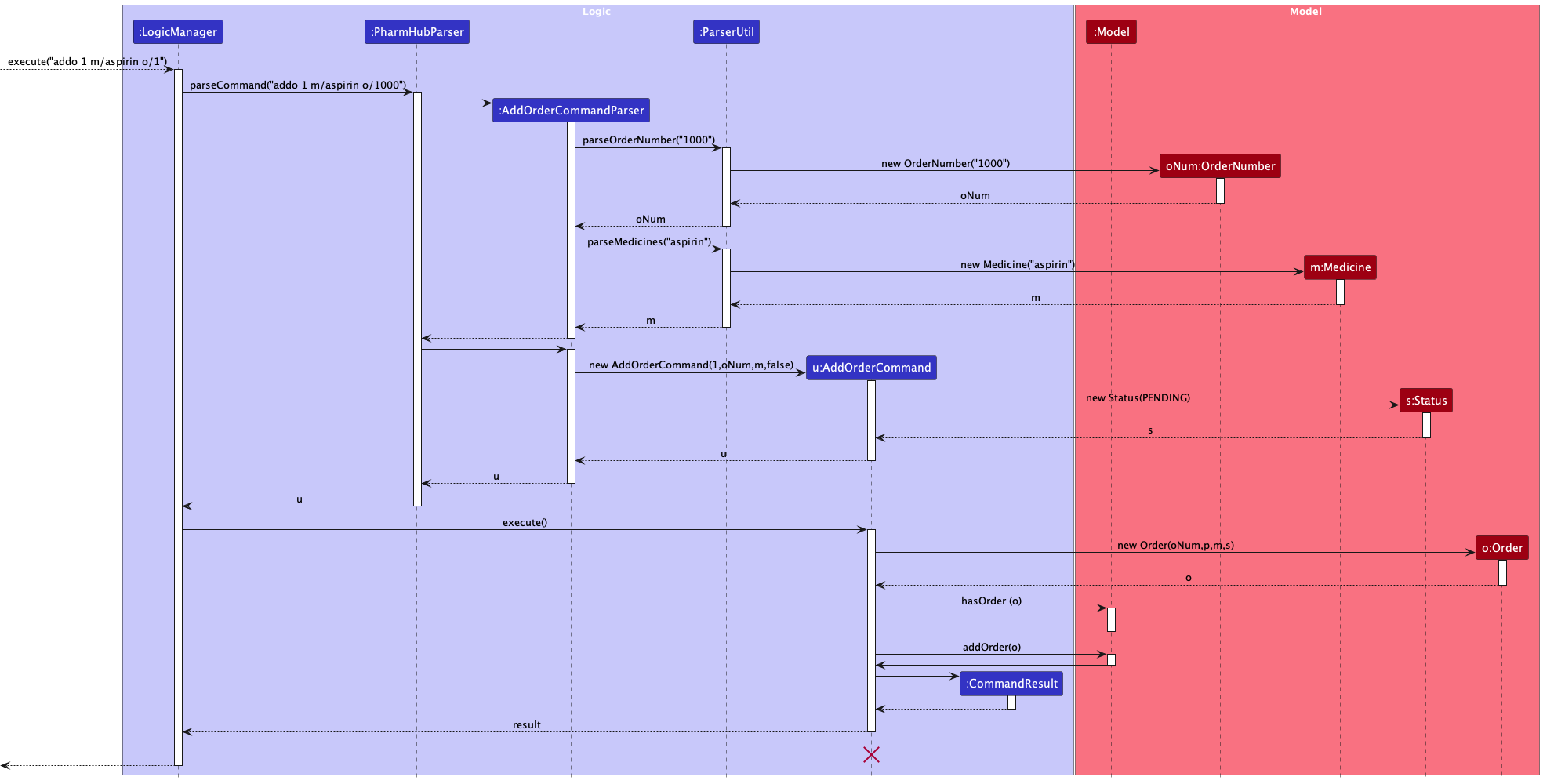

The following sequence diagram shows how addo works on an example input. addo 1 m/aspirin o/1000

Finding an Order Feature

Implementation

The finding an Order feature allows the user to find other base on either the orderStatus, medication in the order or both.

1. The find order feature allows independent Predicate finding.
   1. i.e. you can find order base on only Status or Medicine.
   2. We implemented this format to expend the utility of the feature.

Steps to Trigger

1. The User Launches the application.
2. The User decides to find/filter through the order list after adding multiple orders.
3. The User executes “findo s/pd m/panadol” to find orders that has PENDING status and PANADOL in the order.
4. The FindOrderCommandParser#parse() checks whether all the prefixes and the required values are provided.
5. If the check is successful, depending on the User input if s/ is present ParseUtil#parseStatus will return a Status, and if m/ is present ParseUtil#parseMedicines will return the Medicine.
6. The Status and Medicine will then be passed to the FindOrderCommand.
7. The Model#updateFilteredOrder will then take either or both Status and Medicine as predicates to filter through the order list and return valid orders.
8. The filtered order list will then be returned and shown on the Displayed list.

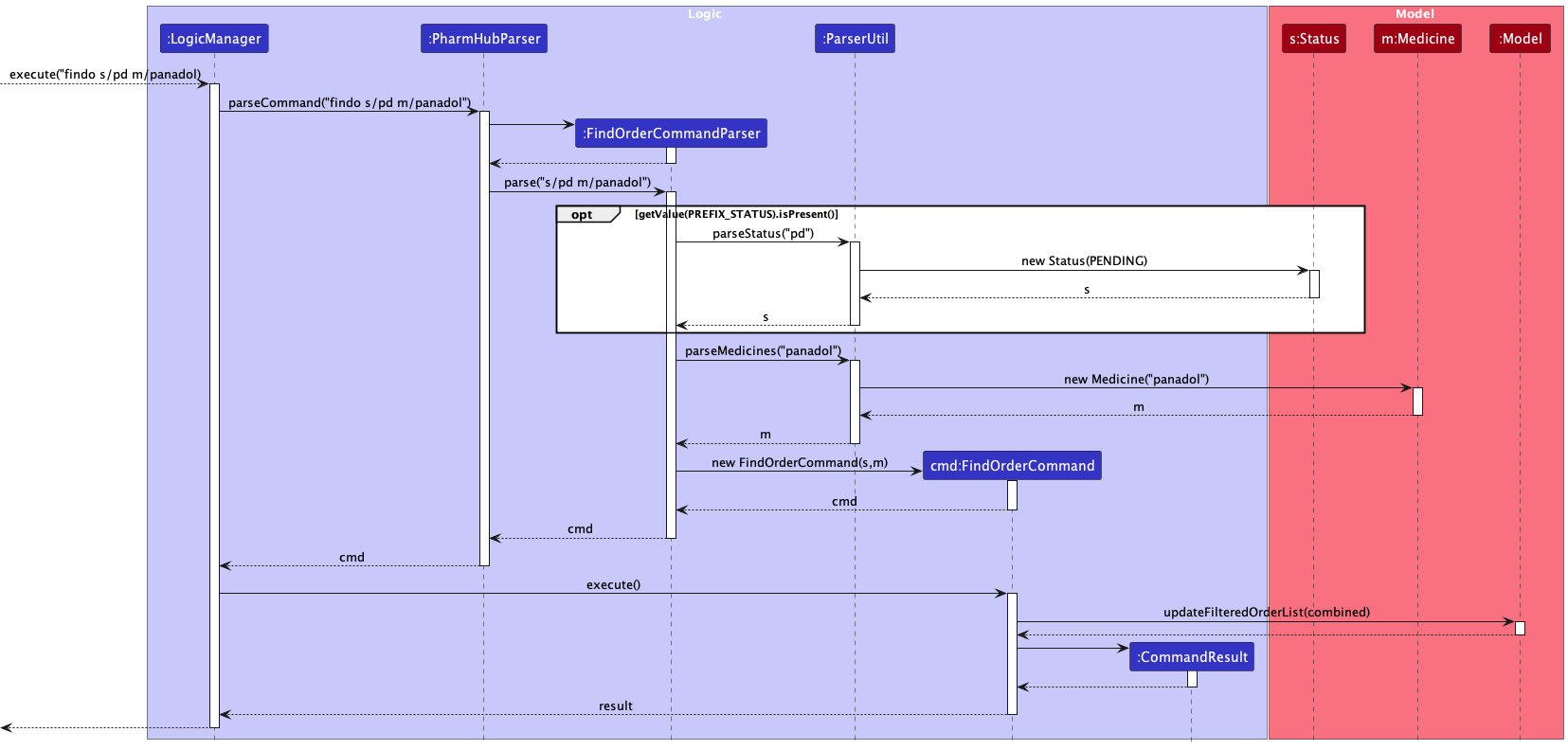

The following sequence diagram shows how findo works on an example input. findo s/pd m/panadol

Undo/redo feature

The undo/redo mechanism is facilitated by VersionedPharmHub. It extends PharmHub with an undo/redo history, stored internally as an undoHistory Deque and redoHistory Deque. Additionally, it implements the following operations:

• VersionedPharmHub#canUndo() —  Checks if there is a previous PharmHub state to revert to
• VersionedPharmHub#undo() — Restores the previous PharmHub state from its `undoHistory.
• VersionedPharmHub#canRedo() —  Checks if there is a future PharmHub state to revert to.
• VersionedPharmHub#redo() — Restores a previously undone PharmHub state from its redoHistory.

These operations are exposed in the Model interface as Model#canUndo(), Model#undo(), Model#canRedo() and Model#redo() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

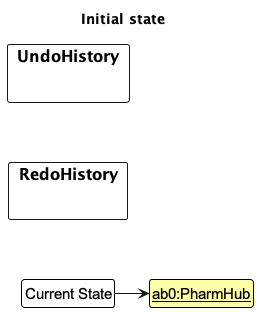

Step 1. The user launches the application for the first time. The VersionedPharmHub will be initialized with the initial pharmHub state, and the CurrentState points to that single pharmHub state. Both undoHistory and redoHistory will be empty.

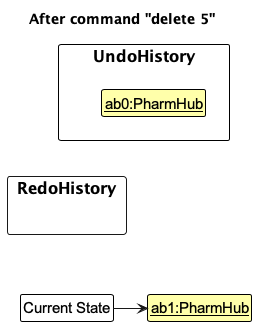

Step 2. The user executes deletep 5 command to delete the 5th person in PharmHub. The deletep command calls Model#deletePerson, which in turn calls VersionedPharmHub#deletePerson. This causes the VersionedPharmHub to save the current state into undoHistory, before calling PharmHub#deletePerson, which deletes the person from PharmHub

Step 3. The user executes addp n/David …​ to add a new person. The addp command calls Model#addPerson, which in turn calls VersionedPharmHub#addPerson repeating the process in step 2.

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undo(), which does the following things in order. It saves the current state into redoHistory, updates Current State to the last state in undoHistory, and removes that last state from undoHistory.

Note: Before the undo operation, the Model will first check if an undo is possible in the first place, and it does so by calling VersionedPharmHub#canUndo(), which checks if undoHistory is empty. If an undo operation cannot be done, an error is thrown by the Model.

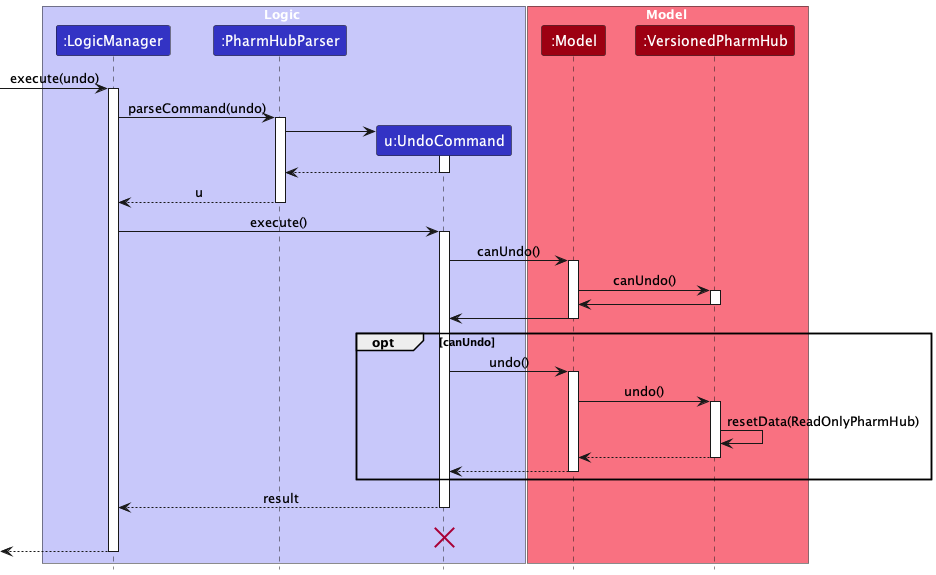

The following sequence diagram shows how the undo operation works:

Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

The redo command does the opposite — it calls Model#redo(), which saves the Current State into undoHistory, sets the Current State as the last state in redoHistory, and removes said state from redoHistory.

Note: Similar to undo, if Model#canRedo returns False, ie. the redoHistory is empty, then the Model throws an error.

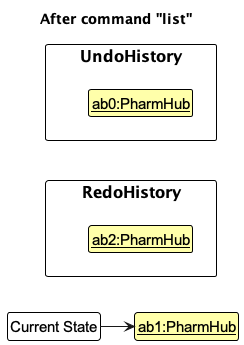

Step 5. The user then decides to execute the command listp. Commands that do not modify data in PharmHub, such as listp, will not change the undoHistory or redoHistory

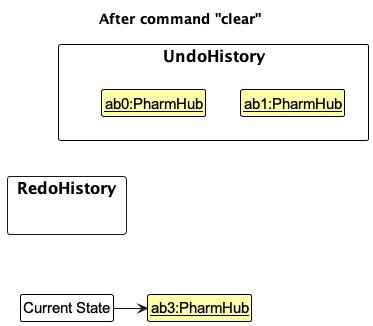

Step 6. The user executes clear, which calls Model#Clear(), which in turn calls VersionedPharmHub#Clear(). As before, the Current State is added to undoHistory, and then PharmHub#clear() is called, which changes the state. Moreover, the redoHistory will be cleared, preventing users from running redo after a data-modifying non-undo command. Reason: This is how most applications handle undo/redo.

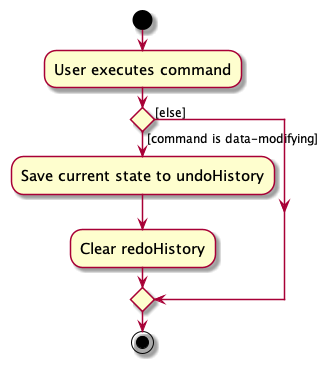

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

• Aspect: How undo & redo executes:

  • Alternative 1 (current choice): Saves the entire pharmHub.
    • Pros: Easy to implement.
    • Cons: May have performance issues in terms of memory usage.
  • Alternative 2: Individual command knows how to undo/redo by itself.
    • Pros: Will use less memory (e.g. for deletep, just save the person being deleted).
    • Cons: We must ensure that the implementation of each individual command are correct.

• Aspect: Effects (Scale) of undo & redo:

  • Alternative 1 (current choice): Only affects data-modifying operations
    • Pros: Simple to implement, provides essential functionality
    • Cons: Non-data-modifying commands cannot be undone, eg. listp
  • Alternative 2: Affects all commands
    • Pros: Changes in view can be undone, leading to greater convenience. Easily extensible to undo certain views
    • Cons: Versioning has to be extended to keep track of UI, which may lead to increased coupling.

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

Appendix: Requirements

Product scope

Target user profile:

Tech-savvy fresh-graduate remote pharmacist managing medication orders for a small-medium sized business, looking to move up the corporate ladder quickly.

Value proposition:

PharmHub provides an efficient yet guarded approach towards processing orders. It allows users to go through the lifecycle of order-fulfillment quickly, whilst protecting against erroneous entries and providing a quick and efficient methods of correcting mistakes.

It is also optimised for CLI use.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

For all use cases below, the Software System is the PharmHub and the Actor is the user, unless specified otherwise.

Use case: UC01 - Adding a person

Guarantees: The new person(patient) will be added to the list of Person only if the person does not exist in the system.

MSS

1. User chooses to add a person.
2. PharmHub adds the new person to the person list.
3. PharmHub displays the updated list and person.
   Use case ends

Extensions

• 1a. PharmHub detects an error in the input.

  • 1a1. PharmHub shows error message.
  • 1a2. User enters new input.
  • Steps 1a1-1a2 are repeated until the input are correct.
    Use case resumes from step 2.

Use case: UC02 - Listing Person list

Guarantees: The Person List would be displayed.

MSS

1. User adds a person UC01.
2. User chooses to view the list.
3. PharmHub shows the Person list.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 2a. The list is empty.
  Use case ends

Use case: UC03 - Editing Person Detail

Guarantees: The Person’s detail would be updated only if the person exists in the system.

MSS

1. User adds a person UC01.
2. User views the person list UC02.
3. User chooses to edit a person’s detail.
4. PharmHub updates the Person list with the updated information
5. PharmHub displays the person.
   Use case ends

Extensions

• 3a. PharmHub detects an error in the input.

  • 3a1. PharmHub shows error message.
  • 3a2. User enters new input.
  • Steps 3a1-3a2 are repeated until the input are correct.
    Use case resumes from step 4.

Use case: UC04 - Adding a medicine

Guarantees: The new medicine will be added to the list of medicines only if the medicine does not exist in the system.

MSS

1. User chooses to add a medicine.
2. PharmHub adds the new medicine to the medicine list.
   Use case ends

Extensions

• 1a. Medicine already exists in the system.

  • 1a1. PharmHub shows error message.
  • 1a2. User enters new input.
  • Steps 1a1-1a2 are repeated until the input is correct.
    Use case resumes from step 2.

Use case: UC05 - Listing Medicine list

Guarantees: The Medicine List would be displayed.

MSS

1. User adds a medicine UC04.
2. User chooses to view the medicine list.
3. PharmHub shows the Medicine list.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 2b. The list is empty.
  Use case ends

Use case: UC06 - Adding a medicine short form

Guarantees: The Medicine would have a short form only if the medicine exist in the system and the short form is unique.

MSS

1. User adds a Medicine UC04.
2. User views the person list UC05.
3. User chooses to add a short form for medicine.
4. PharmHub updates Medicine list with short form.
   Use case ends

Extensions

• 3a. PharmHub detects an error in the input.

  • 3a1. PharmHub shows error message.
  • 3a2. User enters new input.
  • Steps 3a1-3a2 are repeated until the input are correct.
    Use case resumes from step 4.

Use case: UC07 - Deleting a medicine short form

Guarantees: The short form for the medicine will be removed.

MSS

1. User adds a short form U06.
2. User chooses to delete the short form.
3. PharmHub updates Medicine list with an empty short form.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

Use Case: UC08 - Add an Order for a Person

Guarantees: The order is added to the person only if the person exist while the order does not exist in the system.

MSS

1. User views the person list UC02.
2. User chooses to add an order.
3. PharmHub adds the new order to the order list.
4. PharmHub displays the order.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 2b. The person is allergic to the input medication.

  • 2b1. The user input the wrong medication resulting in the error.
    • 2b1a. PharmHub warns the user.
      Use case resumes from step 2.
  • 2b2. The User wants to ignore the warning.
    • 2b2a. PharmHub warns the user
    • 2b2b. User acknowledges the allergy warning but chooses to ignore it.
    • 2b2c. PharmHub creates the order with the provided information.
      Use case resumes from step 3.

In this use case, a pharmacist adds a medication order for a patient using PharmHub. The system first allows the pharmacist to select a patient from the list and provide order details. It then checks for potential contraindications based on the patient’s allergies and issues a warning if necessary. The pharmacist can acknowledge the warning and proceed with the order by adding an “IA” flag to the command. Once confirmed, the system records the order and sends a confirmation to the pharmacist.

Use case: UC09 - Listing Order list

Guarantees: The Order List would be displayed.

MSS

1. User adds an order UC08.
2. User chooses to view the order list.
3. PharmHub shows the Order list.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 2b. The list is empty.
  Use case ends

Use case: UC10 - Update Order Status

Guarantees: The order status will be updated only if the order exist in the system and the new status is of chronological order.

MSS

1. User views the order list UC09
2. User chooses to update the order status.
3. PharmHub updates the order status.
4. PharmHub displays updated order
   Use case ends

Extensions

• 1a. The list is empty.
  Use case ends

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

Use case: UC11 - Finding person

Guarantees: The list of person that contains the keywords would be displayed.

MSS

1. User added multiple person UC01.
2. User chooses to the find person command.
3. PharmHub filters through the person list.
4. PharmHub then displays the filtered person list.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 3a. The keywords given does not match with any person.

  • 3a1. Empty list is shown.
    Use case ends.

Use case: UC12 - Finding orders

Guarantees: The list of Orders that fulfills the status or medicine or both will be displayed.

MSS

1. User added multiple order UC08.
2. User chooses to find orders base on their status or medicine or both.
3. PharmHub filters through the order list.
4. PharmHub then displays the filtered order list.
   Use case ends

Extensions

• 2a. PharmHub detects an error in the input.

  • 2a1. PharmHub shows error message.
  • 2a2. User enters new input.
  • Steps 2a1-2a2 are repeated until the input are correct.
    Use case resumes from step 3.

• 3a. The status and medicine keyword given does not match with any order.

  • 3a1. Empty list is shown.
    Use case Ends.

• 3b. User input invalid fields.

  • 3b1. PharmHub detects an error in the input.

    • 3b1a. PharmHub shows error message.
    • 3b1b. User enters new input.
    • Steps 3b1a-3b1b are repeated until the input are correct.
      Use case resumes from step 4.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
3. Each command should take no longer than 0.1s to execute.
4. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
5. Should be able to hold up to 1000 orders without a noticeable sluggishness in performance for typical usage.
6. Should be able to hold up to 1000 medicines without a noticeable sluggishness in performance for typical usage.
7. Application should be a standalone executable so that it doesn’t require the user to install other libraries to run.
8. Application should be smaller than 100mb so that application can be run on space constrained systems.
9. Generated storage file shouldn’t take up more than 100mb of storage so that the application can be run on space constrained systems.

Glossary

Application

• Patient: A person who is under the care of a Pharmacist.
• Pharmacist: A person who is responsible for dispensing Medicine to Patients.
• Order: An order by a Patient for one or multiple Medicines from a Pharmacy.
• Medicine: A substance used for medical treatment.
• Allergy: A Medicine that a Patient is allergic to.

General

• Mainstream OS: Windows, Linux, Unix, OS-X
• CLI: Command Line Interface
• GUI: Graphical User Interface
• API: Application Programming Interface
• MSS: Main Success Scenario (or, Happy Path)

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: The application opens. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.

      Expected: The most recent window size and location is retained.

Adding a person

1. Adding a Person with Valid Details

   1. Test Case: addp n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01

      Expected: John Doe is added as a new person to PharmHub. All provided details, including the name, phone number, email, and address, are correctly saved. No errors or warnings are displayed.

   2. Test Case: addp n/Betsy Crowe t/diabetic e/betsycrowe@example.com a/19 Kent Ridge Crescent p/1234567 t/senior

      Expected: Betsy Crowe is added as a new person to PharmHub. All provided details, including the name, phone number, email, and address, tags, and allergies, are correctly saved. No errors or warnings are displayed.

2. Adding a Person with Incorrect/Incomplete Information

   1. addp n/Jane Doe

      Expected: An error message is displayed due to the absence of the phone number, email, and address. The person isn’t added as these details are mandatory.

3. Adding a Person with Duplicate Name

   1. Prerequisites: A person with name “John Doe” already exists in PharmHub. This can be done using the command in 1.i.

   2. Test case: addp n/John Doe p/9872 e/anotherjohnd@example.com a/Jane street, block 42, #03-02

      Expected: An error message is displayed due to the presence of a person with the same name. The person isn’t added as names must be unique.

4. Adding a Person with an allergy which is not yet in the Medicine list

   1. Prerequisites: A persons list without the person with name “John Doe”. A medicine list without the medicine “Aspirin”.

   2. Test case: addp n/John Doe p/98765432 e/johnd@example.com a/311, Clementi Ave 2, #02-25 no/Aspirin

      Expected: An error message is displayed due to the presence of an allergy which is not in the medicine list. The person isn’t added as the allergy must be in the medicine list.

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the listp command. Multiple persons in the list.

   2. Test case: deletep 1


      Expected: First contact is deleted from the list. Details of the deleted contact is shown in Info Display.

   3. Test case: deletep 0
      Expected: No person is deleted. An error message is displayed due to an invalid index being used.

   4. Other incorrect delete commands to try: deletep, deletep x, ... (where x is larger than the list size)

      Expected: Similar to previous.

Viewing a person

1. Viewing a person with valid index

   1. Prerequisites: There is at least 1 person in the persons list of PharmHub. This can be done using the command in 1.i. This can be checked using the command: listp

   2. Test case: viewp 1

      Expected: First contact is shown in the Info Display.

   3. Test case: viewp 0

      Expected: No person is shown. An error message is displayed due to an invalid index being used.

   4. Other incorrect view commands to try: viewp, viewp x (where x is larger than the list size)

      Expected: No person is shown. An error message id displayed due to an invalid index being used.

Editing a person

1. Editing a person using valid fields

   1. Prerequisites: List all persons using the list command. Multiple persons in the list. No person named ‘Johnson Doe’ in PharmHub.

   2. Test case: editp 1 n/Johnson Doe p/98765432

      Expected: First person is edited. Details of the edited person is shown in the Info Display.

Finding person(s)

1. Finding person(s) using valid fields

   1. Test case: findp n/John

      Expected: The person(s) with the word “John” or “john” in his/her name are listed in the display list panel.

   2. Test case: findp n/Alex John

      Expected: All person(s) with name containing “Alex”, “alex”, “John”, or “john” are listed in the display list panel.

   3. Test case: findp no/Aspirin Paracetamol

      Expected: All person(s) with allergy containing “Aspirin” or “Paracetamol” are listed in the display list panel.

   4. Test case: findp p/123456

      Expected: All person(s) with phone number exactly equal to “123456” are listed in the display list panel.

   5. Test case: findp e/john@gmail.com

      Expected: All person(s) with email exactly equal to “john@gmail.com” are listed in the display list panel.

2. Finding person(s) using invalid input

   1. Test case: findp

      Expected: An error message is displayed due to the absence of any field. No person is shown.

   2. Test case: findp n/

      Expected: An error message is displayed due to the absence of the name. No person is shown.

Listing all medicines

1. Test case: listm


   Expected: All medicines listed in the display panel.

Finding medicine(s)

1. Test case: findm pan

   Expected: All medicine whose names have pan as a substring listed in the list display. The number of medicines listed shown in result display box.

2. Test case: findm pan ol

   Expected: All medicine whose names have either pan or ol as a substring are listed in the list display. The number of medicines listed shown in result display box.

Adding a medicine

1. Adding a medicine that doesn’t exist

   1. Prerequisites: List all medicines using the listm command. No medicine named metformin should be in the list.

   2. Test case: addm m/metformin

      Expected: Medicine is added.

   3. Test case: addm m/

      Expected: No medicine is added. An error message is displayed due to the invalid command format.

   4. Other incorrect addm commands to try: addm , addm p/, addm 1

      Expected: Similar to previous.

2. Adding a medicine that already exists

   1. Prerequisites: List all medicines using the listm command. A medicine named metformin should be in the list.

   2. Test case: addm m/metformin

      Expected: Medicine is not added. An error message is displayed because ‘metformin’ already exists in PharmHub.

Deleting a medicine

1. Deleting a medicine no person is allergic to and not part of any order.

   1. Prerequisites: metformin should be in the medicine list. Find it using findm metformin. No Order contains metformin and no Person has an allergy to metformin.

   2. Test case: deletem 1

      Expected: First medicine is deleted from the list.

   3. Test case: deletem 0

      Expected: No medicine is deleted. An error message is shown due to an invalid index being used.

   4. Other incorrect delete commands to try: deletem, deletem x, ... (where x is larger than the list size)

      Expected: Similar to previous.

2. Deleting a medicine a person is allergic to.

   1. Prerequisites: panadol should be in the medicine list. If not add it using addm. At least one person should be allergic to panadol. If not use editp to make a person allergic to panadol. panadol should be the 1st medicine in the list. If not, find panadol using findm panadol

   2. Test case: deletem 1

      Expected: No medicine is deleted. An error message is shown as a Person or and Order uses this medicine.

Short form of medicine

1. Adding a short form to a medicine

   1. Prerequisites: metformin should be in the medicine list, it should have no short form and no medicine should have met as the short form. It should be the 1st medicine in the medicine list. If not, find it using findm metformin

   2. Test case: sfm 1 m/met

      Expected: Short form of met is added to the metformin medicine.

   3. Test case: sfm 1 met

   Expected: Short form is not added to the metformin medicine. An error message is shown due to an invalid command format used.

2. Deleting a short form of a medicine.

   1. Prerequisites: metformin should be in the medicine list, it should have a short form. It should be the first medicine in the medicine list. If not, find it using findm metformin

   2. Test case: sfm 1 d/

      Expected: Short form of metformin medicine is deleted.

   3. Test case: sfm 1 m/ d/

      Expected: Short form of metformin medicine is deleted.

   4. Test case: sfm m/ d/

      Expected: Short form of metformin medicine is not deleted. An error message is shown due to an invalid format being used.

Listing all orders

1. Test case: listo

Expected: All orders listed in the display list panel.

Finding order(s)

1. Finding an order by status short form only

   1. Test case: findo s/pd

      Expected: All orders with PENDING Status will be listed in the display list panel. The number of orders listed shown in result display box.

2. Finding an order by status full form only

   1. Test case: findo s/pending

      Expected: All orders with PENDING Status will be listed in the display list panel. The number of orders listed shown in result display box.

3. Finding an order by multiple medicine keywords

   1. Test case: findo m/pan m/ol

   Expected: All orders with medicine whose names have pan or ol as a substring will be listed in the display list panel. The number of orders listed shown in result display box.

4. Finding an order by both status and medicine keywords

   1. Test case: findo s/pd m/pan m/ol

   Expected: All orders that has both PENDING status and with medicine whose names have either pan or ol as a substring will be listed in the display list panel(both conditions - Status and Medicine - must be fulfilled). The number of orders listed shown in result display box.

5. Finding an order with an invalid status

   1. Test case: findo s/wowow

      Expected: No orders will be listed in the display list panel. An error message will be shown due to an invalid status searched for

Adding an order

1. Adding an order that doesn’t exist

   1. Prerequisites: List all order using the listo command. No order with the order number 1234 should be in the list.

   2. Prerequisites: List all person using the listp command. Person base on index that is assigned order to should exist.

   3. Prerequisites: List all medicine using the listm command. Medicine that will be in the order must be in the list.

   4. Prerequisites: Person should not be assigned to medicine they are allergy to.

   5. Test case: addo 1 m/pan o/1234

      Expected: Order is added. Details of the order shown in the Information display.

   6. Test case: addo 1 o/1234, addo 1 m/pan

      Expected: No Order is added due to missing details. An error is displayed due to an invalid format being used.

   7. Test case: addo m/, addo

      Expected: Similar to previous.

2. Adding an order that already exists (i.e. OrderNumber already exist)

   1. Prerequisites: List all orders using the listo command. An order with order number 1234 should be in the list.

   2. Test case: addo 1 m/pan o/1234

      Expected: Order is not added. An error message is shown because an order with the same order number already exists.

3. Adding an order with medicine the person is allergy to.

   1. Prerequisites: List all orders using the listo command. An order with order number 2222 should not be in the list.

   2. Prerequisites: List all person using the listp command. The 1st person in the person list should be allergic to paracetamol. If not, edit his details to make him so.

   3. Test case: addo 1 m/paracetamol

      Expected: Order is not added. A warning message is displayed as the patient is allergic to paracetamol.

   4. Test case: addo 1 m/paracetamol ia/ (ignore allergy flag ia)

      Expected: Order is added. Details of tht order shown in the Information display.

Updating the order status

1. Updating an order status with valid chronological order.

   1. Prerequisites: List all orders using the listo command. The status of the 1st order should be PENDING. If not, add a new order and make that order the 1st in the order list using findo.

   2. Test case: updates 1 s/pr

      Expected: Order status updated to PREPARING. Details of the updated order is shown in the Information display box.

   3. Test case: updates 1 s/completed

      Expected: Order status updated to COMPLETED. Details of the updated order is shown in the Information display box.

   4. Test case: updates 1 s/pending

      Expected: Order status not updated. An error message is shown as orders can only be updated to a status of higher hierarchy.

   5. Test case: updates 1 s/pwpw

      Expected: Order status not updated. An error message is shown due to an invalid status being entered.

Deleting an order

1. Deleting an order

   1. Prerequisites: List all orders using the listo command. The order to delete should be the 1st in the list shown.

   2. Test case: deleteo 1

      Expected: First order is deleted from the list. Details of the deleted order is shown in Information display box.

   3. Test case: deleteo

      Expected: No order deleted. An error message is shown due to an invalid command format being used.

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

Appendix: Planned Enhancements

1. Currently, to delete a short form a medicine the user has to provide d/ flag through the sfm command to delete the short form of a medicine at a specified index. However, if any short form name is provided using the m/ flag, it will be ignored without any warning. Thus, sfm 1 m/met d/ deletes the short form the medicine at index 1 which ignoring met. We plan to make the sfm command accept exactly one of m/ or d/ flags. This way the command sfm 1 m/met d/ would be regarded as an invalid command rather than one which deletes the short form.

2. Currently, when adding a medicine there is no way for the user to specify the short form right then. Hence, the user has to first add the medicine followed by using sfm command to add a short form to it. We plan to allow addm accept an optional parameter for the short form of the medicine being added.

3. Currently, the sample data shows incorrect values for tags of persons. We plan to fix this by replacing the current sample tags with tags that are appropriate in a pharmacy setting like Elderly, Diabetic or Child and so on.

4. Currently, there are no sample data for orders. We plan to add some sample orders so that users are better equipped to play around with the application on first start.

5. Currently, some error messages are not standardised. We plan to standardise all error messages across the application with the following format. All error messages will 1. Give an explanation of what went wrong, 2. Provide the appropriate formats and examples for the command that the user is trying to enter.

6. Currently, Undo and Redo commands do not affect the UI. As such, commands such as listp and findp cannot be undone. Moreover, this makes it such that a recently added person, that is later deleted by undo, will still be visible in the Info Display, until another command (eg. viewp) displaces it.
   Example:

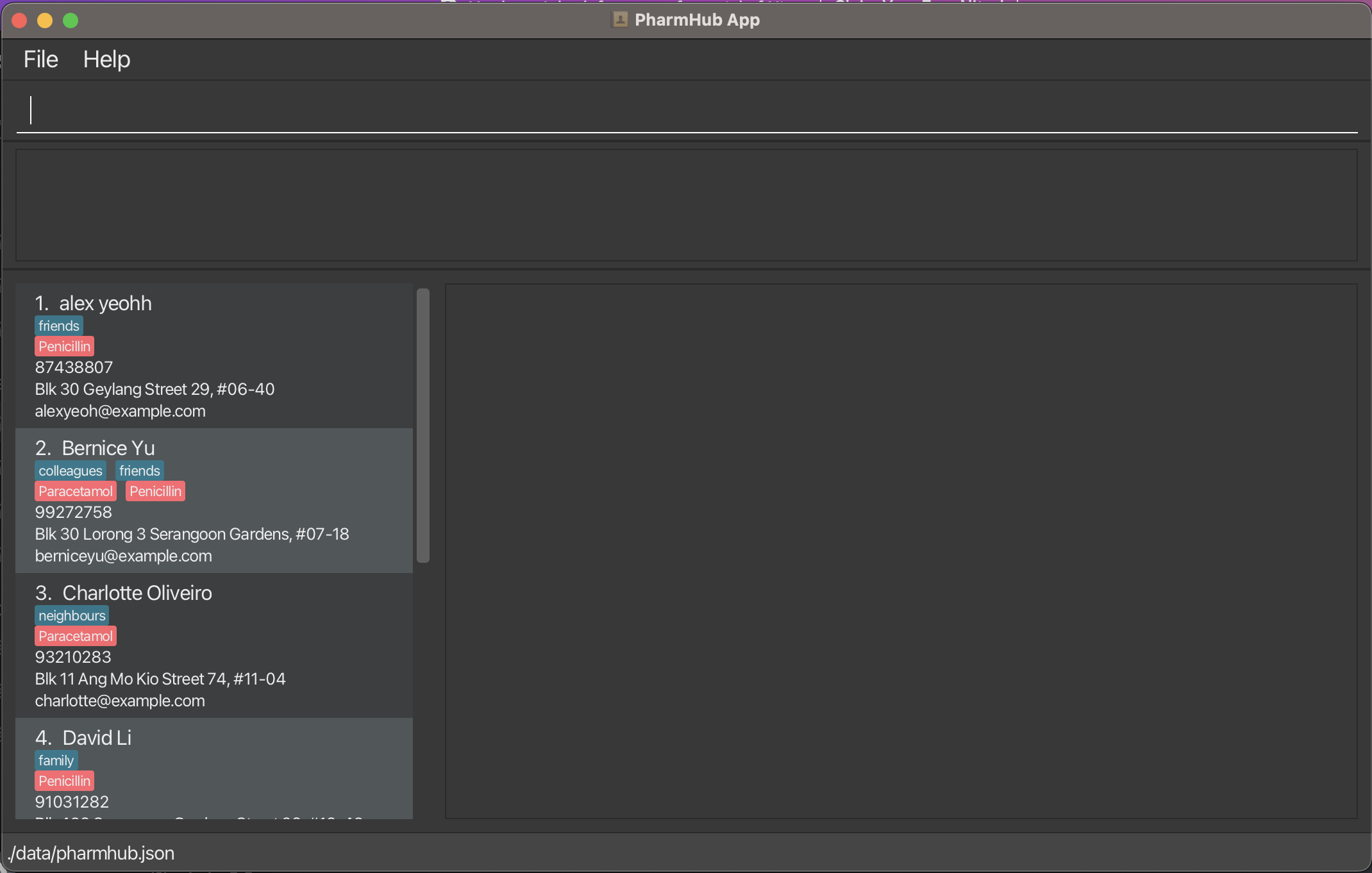

   Originally, PharmHub has the following display.

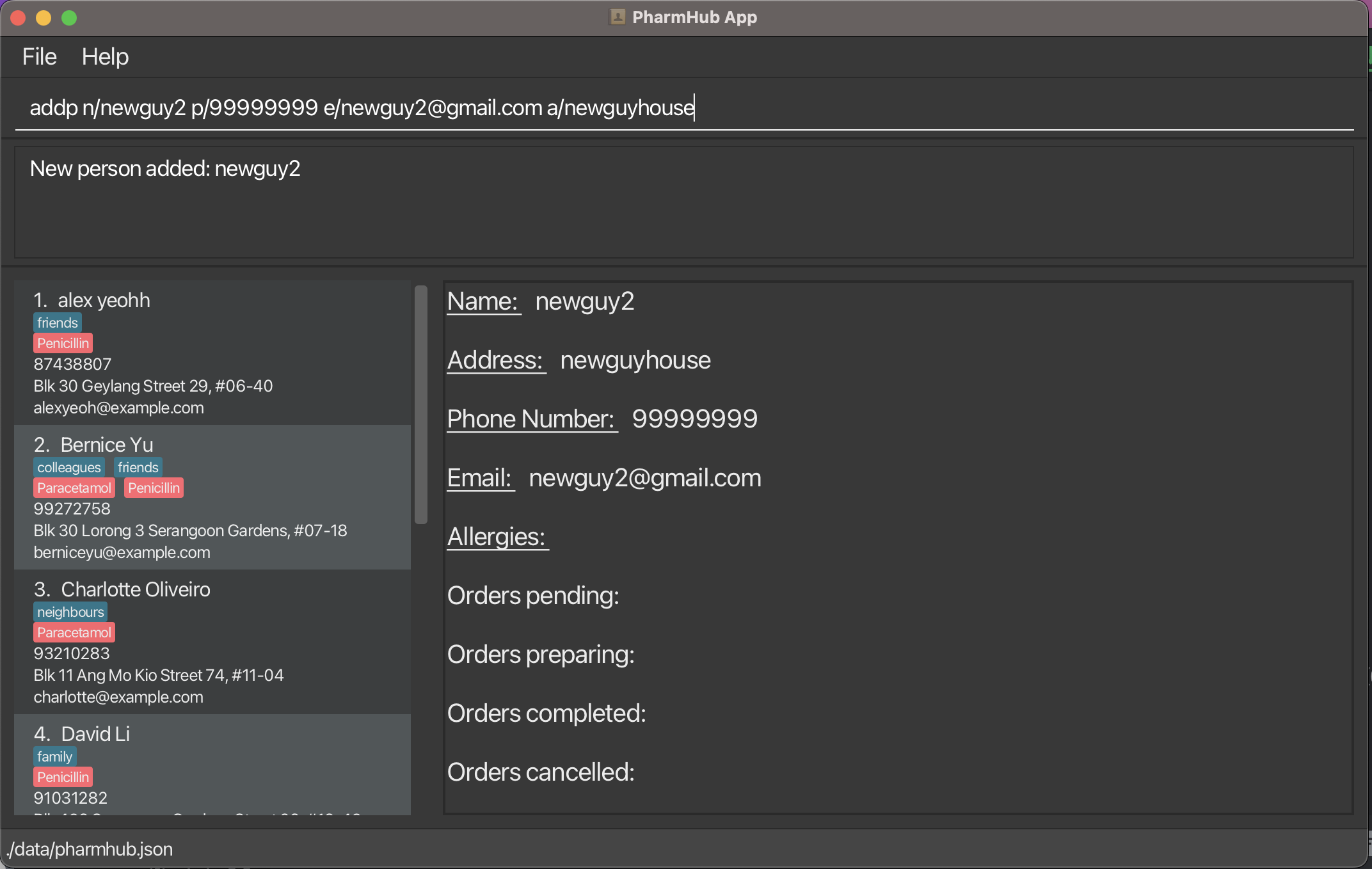

   After adding a ‘newguy2’ using addp, he shows up in the Info Display.

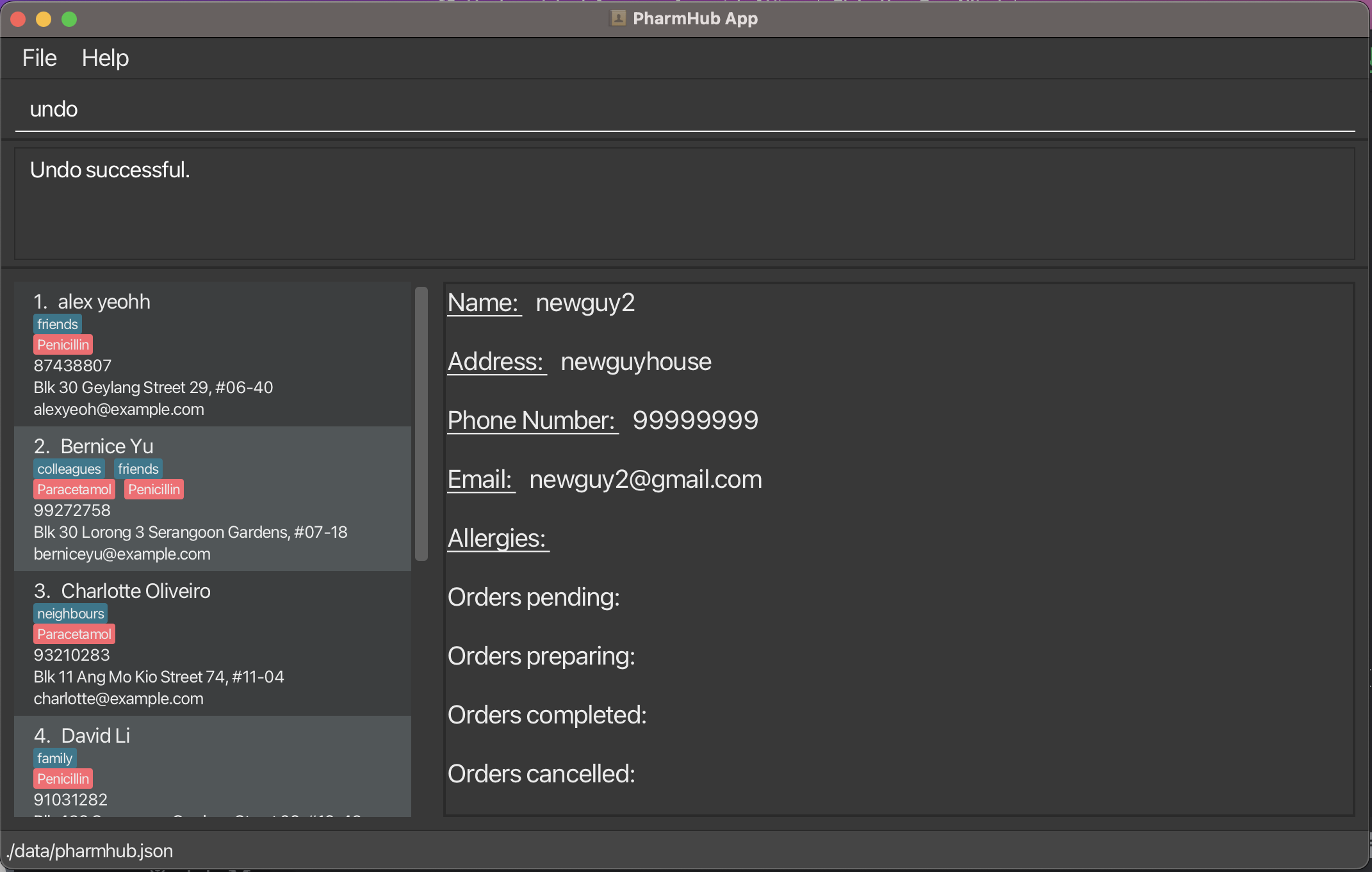

   On undo, the person’s information still stays on the Info Display, even though he no longer exists in PharmHub.

   We plan to enhance the Undo/Redo feature to allow UI changes to be undone/ redone. In this way, UI states are saved along with the data, and can be reverted with undo and redo.
   In the case of the example given, after the implementation of this planned enhancement, the UI should revert back to an empty display after the undo command is ran.

Appendix: Effort

Challenges

• As a four-man team, each of us had to do take on a heavier workload to hit the necessary level of functionality in our product.
• We also had to pick up many new things along the way. Some of this include Json for storage, JavaFx for Ui and PlantUml for documentation.
• Unexpected dependencies in code between different team members significantly slowed down speed of development as one member had to wait for another before proceeding.

Effort Required

Original AB3 only tracked one entity type, person. Our application however, tracks three different entity types, person, order and medicine.
This required significant effort.

• In Storage, we had to ensure that the data is valid in all the different places. For example, a medicine could appear as an entity in PharmHub itself, or in the allergies or a person or in an order. Similar checking had to be done for person and order. Validating all this and ensuring that referential integrity was upheld took significant effort.
• In Ui, due to the coupling between the three entities, it once again took a lot of effort to ensure all the UI information is being displayed correctly. For example, when a person is edited we had to ensure the corresponding UI for order reflects it as well.
• In Logic, we had to ensure no regressions took place due to user behaviour. For example, we had to ensure a medicine can’t be deleted when there is a person allergic to it or when an order contains it. We also had to check if editing a person will result in them being allergic to a medicine in their order. There were several other such instances.

Achievements

Despite the steep learning curve and difficulties, we managed to build a product that we believe will be beneficial to our target audience.
It has features that cater to their needs and solves their pain points.
