User Guide

Welcome to PharmHub!

---

PharmHub – Where Precision Meets Prescription

PharmHub is the ideal solution for remote pharmacists seeking to enhance precision and maximise efficiency in their work.

A powerful desktop application designed for the meticulous management of patient details and their medication orders, PharmHub provides that much needed safety-net that all remote pharmacists only dream of having, ensuring that no errors slips through the cracks.

More than just your normal application, PharmHub is optimised to keep up with your fast fingers, allowing you to cruise through commands via its Command Line Interface (CLI), whilst offering an interactive GUI, if you should choose to use it.

PharmHub isn’t just software. It’s your ally in precision pharmaceutical management.

This guide aims to enlighten you on the workings of PharmHub, and empower you to utilise your new companion to the fullest.

Getting started in a breeze:

• Jump around quickly via our Table Of Contents
• Familiarise yourself with key Definitions
• Get to know our GUI through our Application Navigation
• Dive into our hands-on Quick Start guide
• Explore the array of capabilities in our Features section
• Refresh your memory with our Command Summary
• Find solutions to issues faced at our Troubleshooting section

---

Table of Contents (TOC)

1. Definitions
   1. Medicine
   2. Person
   3. Order
   4. Status
   5. Fields
   6. Index
2. Application Navigation
3. Quick Start
4. Features
   1. Help
   2. Person Commands
      1. Add Person
      2. List People
      3. Find Person
      4. View Person
      5. Edit Person
      6. Delete Person
   3. Medicine Commands
      1. Add Medicine
      2. Add Short Form for Medicine
      3. List Medicines
      4. Find Medicine
      5. Delete Medicine
   4. Order Commands
      1. Add Order
      2. List Orders
      3. Find Order
      4. View Order
      5. Update Order Status
      6. Delete Order
   5. Undo
   6. Redo
   7. Clear
   8. Exit
5. Command Summary
6. Troubleshooting
   1. FAQ
   2. Common Errors
7. Glossary

---

Definitions

Jump to TOC

This section provides an introduction to the terminology used in this user guide.

Medicine

A medicine is the item to be packaged and delivered as part of fulfilling an order.

A Medicine has the following attribute:

• Full Name
• Short form (Optional)

Medicines are uniquely identified by their full and short form names. No two medicines can have the same names.

Person

A person refers to the patient whom the pharmacist is addressing.

A person has the following attributes:

• Name
• Phone number
• Email Address
• Address
• Allergies (Can be zero or more)
• Tags (Optional for additional remarks/inputs for the person. Can be zero or more)

A person is uniquely identified by their name. No two persons can have the same name and names are case-insensitive.

Order

An order refers to a purchase of one or more medicines by a particular person.

An Order has the following attributes:

• Order Number
• Person (Who the order belongs to)
• Medicines (Can be one or more)
• Status of the order

Orders are uniquely identified by their order numbers. No two orders can have the same order number.
Orders can only be created for people that have been added into the PharmHub system.
No order containing a medicine that the person is allergic to can be added without a special flag.
Orders will automatically tag under the PENDING Status when added.

Status

Status is used to describe the process at which the order is at. Statuses can only be updated/modified following their chronological order.

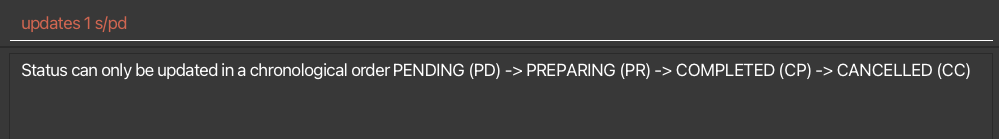

PENDING/PD -> PREPARING/PR -> COMPLETED/CP -> CANCELED/CC

Statuses can be identified either in their full form or in their short form as shown above (FullForm/ShortForm).
Statuses are case-insensitive.

Fields

• Fields are the different parts of a command.
  e.g. in editp 1 n/Alex no/penicillin, there are four fields: editp, 1, Alex, and penicilllin.
• Excess spaces will be ignored. As such Alex Yeoh will produce the same result as Alex     Yeoh
• To input a / character in a field, use another / before it.
  If there is an odd number of consecutive /, one of them will be ignored.
  e.g To input Roy s/o Balakrishnan, use Roy s//o Balakrishnan

The following fields are used for commands:

Field	Prefix	Format	Example
Index	-	Must be a positive integer	1, 2, 3
Keyword	-	Must not be empty	pan, Ah Tan s//o Ah Tan Tan
Command	-	Must be the first part of input and is case-insensitive	addo, listm
Name	n/	Must only contain alphanumeric, space, dot, slash, hyphen and single quote characters. Case insensitive	Roy s//o Balakrishnan, Connell O'Brien

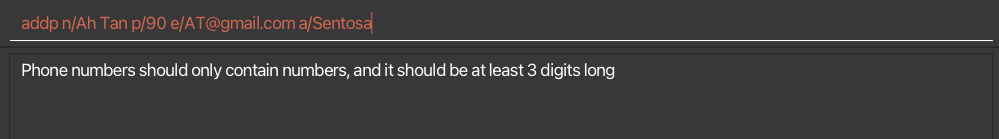

Phone number	p/	Must be numeric and be at least 3 digits long	999, 68741616
Email address	e/	Must be a valid email address	roy@gmail.com, Alex123@outlook.com
Tags	t/	Must contain alphanumeric characters only (no spaces)	Diabetic, Elderly
Address	a/	Must not be empty	Sentosa cove, Pulau NTU
Status	s/	Must be a valid Status (Refer to Status)	PENDIND, Cc
Medicine	m/	Must not be empty and is not case sensitive.	metformin, panadol
Allergy	no/	Must be a medicine name in PharmHub or its short form	panadol, pan

Index

Index refers to the numbering in the last shown person/ order/ medicine list.

Refering to the image below, index 1 refers to OrderNumber #1 while index 3 refer to OrderNumber #5.

All indices have to be positive integers.

---

Application Navigation

Jump to TOC

Below shows a guide on how you can navigate around our interactive Graphical User Interface (GUI)

Component	Description	Remarks
Help Button	Shows URL to our User Guide.	-
Command Input Field	Type commands here and press Enter to execute them.	-
Result Display Box	Shows the result of the command execution.	-
Display List	Shows a list of people/ orders/ medications	Type of list shown changes based on commands entered.
Display Card	Shows an overview of a particular person/ order/ medication in the list	-
Information Display	Shows all details of a person/ order	Object (Person/ Order) shown varies based on commands entered.

---

Quick start

Jump to TOC

1. Ensure you have Java 11 or above installed in your Computer.
   • Run java --version in your command terminal to see the java version.
   • For both Mac and Window user click here for a guide to download the required java version for your computer.

2. Download the latest PharmHub.jar from here.

3. Copy the file to the folder you want to use as the home folder for your PharmHub.

4. Open a command terminal, cd into the folder you put the jar file in, and use the java -jar pharmhub.jar command to run the application.

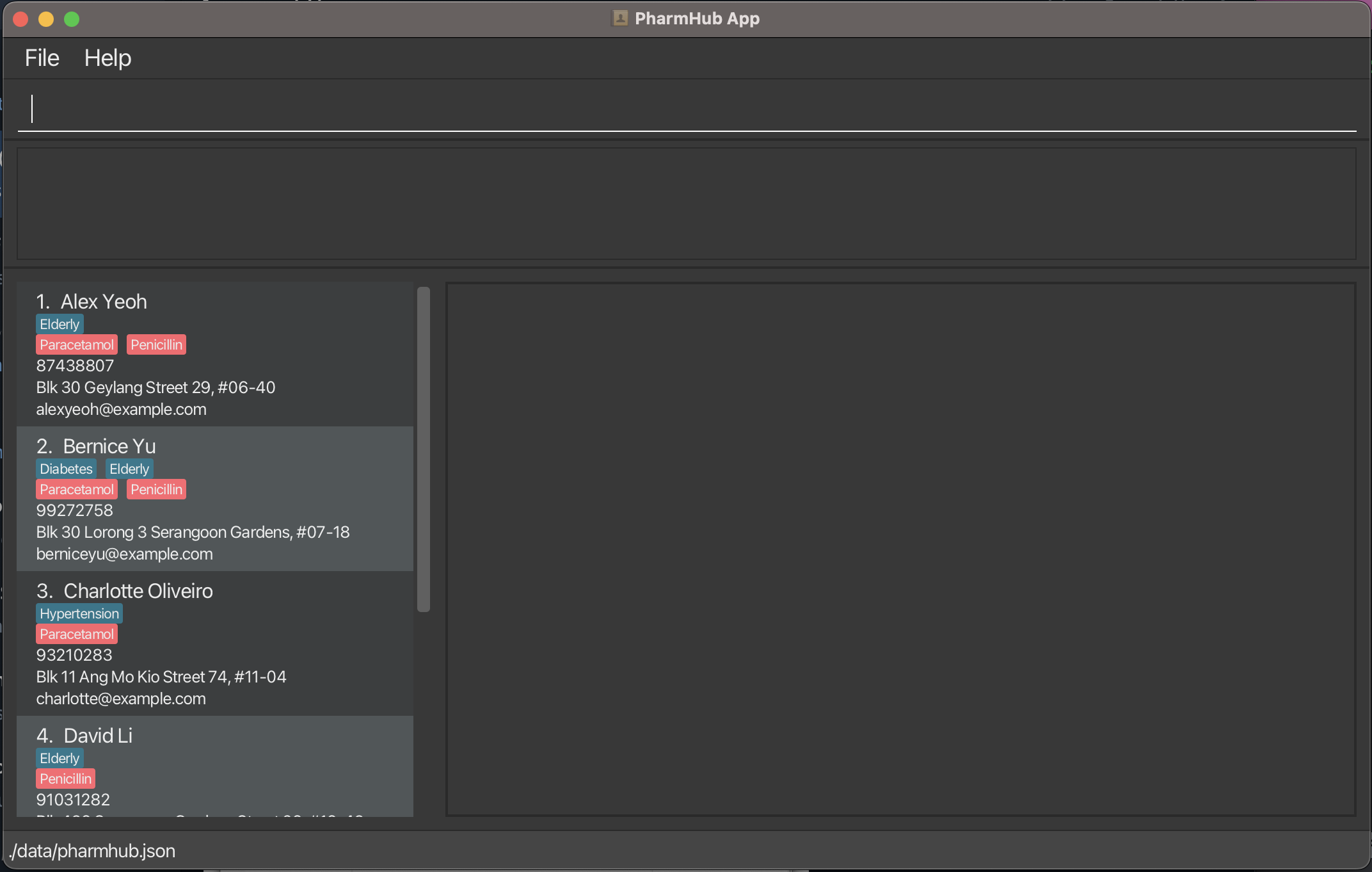

   A GUI similar to the below should appear in a few seconds. Note how the app contains some sample data.


5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the help window.
   Some example commands you can try:

   • addm m/ibuprofen: Adds a medicine named Ibuprofen to PharmHub.

   • listm : Lists all medicine.

   • addp n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 : Adds a person named John Doe to PharmHub.

   • addo 1 m/ibuprofen o/123: Adds an order with order number 123 for person indexed 1 to PharmHub.

   • listp : Lists all people.

   • viewp 1 : views in detail index 1 of the person list. (The Displayed list does not have to be the list of people)

   • listo : Lists all order.

   • viewo 123 : views in detail Order #123 (Note: not index 123).

   • updates 1 s/pr : Updates the 1st order (index 1) of the order list to a status of PREPARING

   • clear : Deletes all people, orders, and medicines.

   • undo : Undoes the clear command

   • exit : Exits the app.

6. Refer to the Features below for details of each command.

---

Features

Jump to TOC

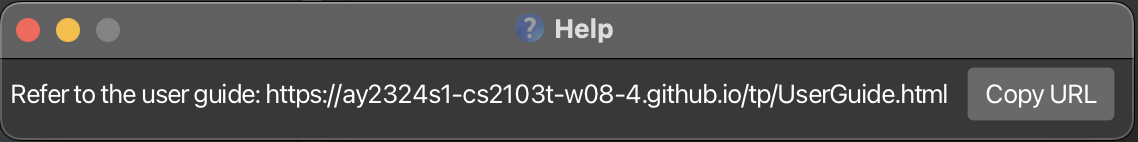

Viewing help : help

Shows a message explaining how to access the help page.

Format: help

Person Commands

Jump to TOC

Adding a person : addp

Adds a person to PharmHub.

Format: addp n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS [t/TAG]… [no/ALLERGY]…​

Examples:

• addp n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 no/paracetamol no/penicillin
• addp n/Betsy Crowe t/friend e/betsycrowe@example.com a/Newgate Prison p/1234567 t/criminal

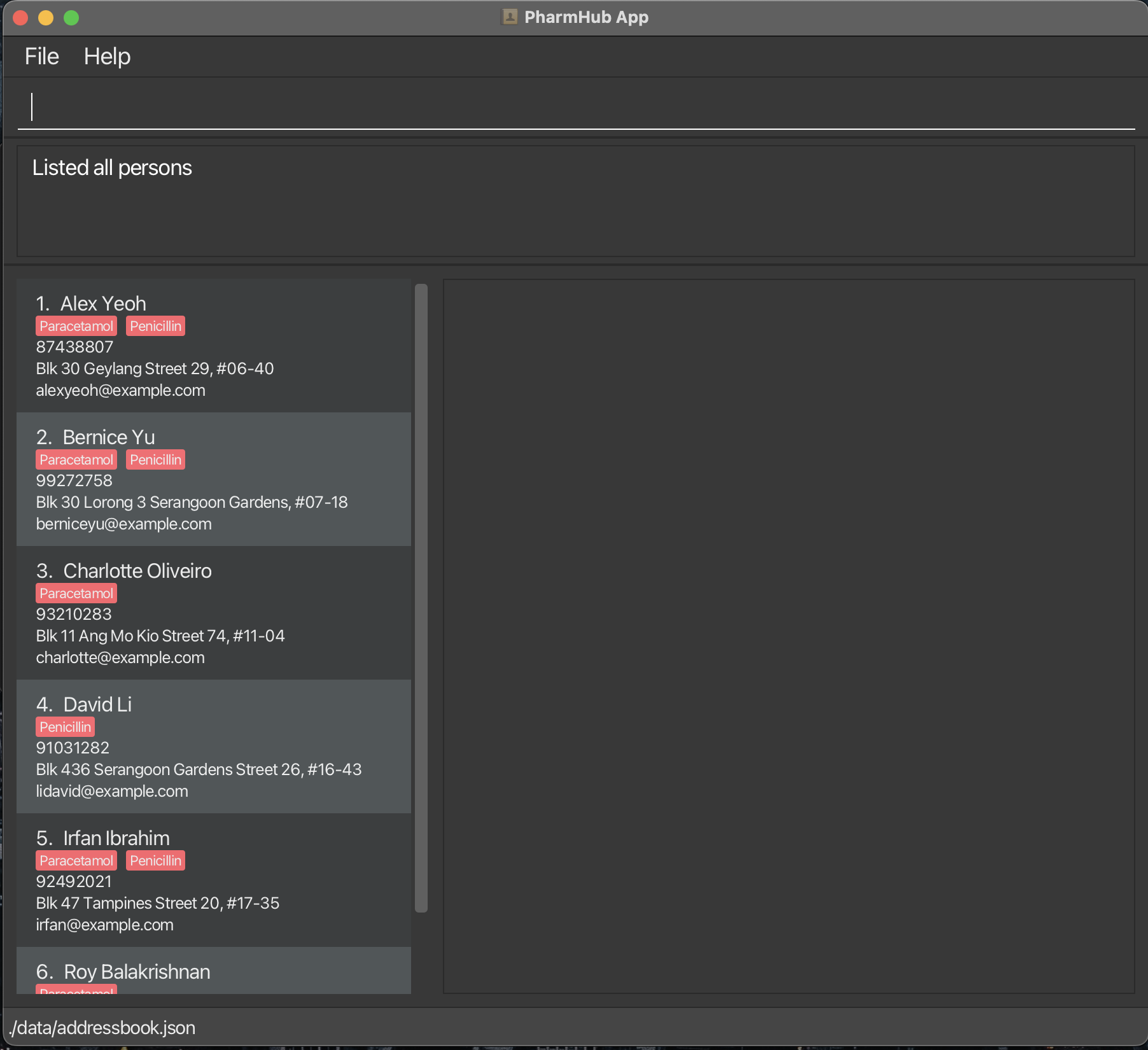

Listing all persons : listp

Shows an interactive list of all persons in PharmHub.

Format: listp

Finding a person : findp

Finds persons whose names, phone numbers, emails, tags, and allergies match the given inputs.

Format: findp [n/KEYWORD [MORE_KEYWORDS]…] [p/PHONE_NUMBER] [e/EMAIL] [no/KEYWORD [MORE_KEYWORDS]…]

• At least one of the parameters must be specified.
• The search for name and allergies are case-insensitive. e.g hans will match Hans, paracetamol will match Paracetamol
• The order of the keywords does not matter. e.g. Hans Bo will match Bo Hans
• Only full words will be matched e.g. Han will not match Hans
• Persons matching at least one keyword will be returned (i.e. OR search). e.g. Hans Bo will return Hans Gruber, Bo Yang
• The search for phone number and email are case-sensitive and must be an exact match. e.g. 9123456 will not match 91234567 and johndoe@example does not match johndoe@example.com

Examples:

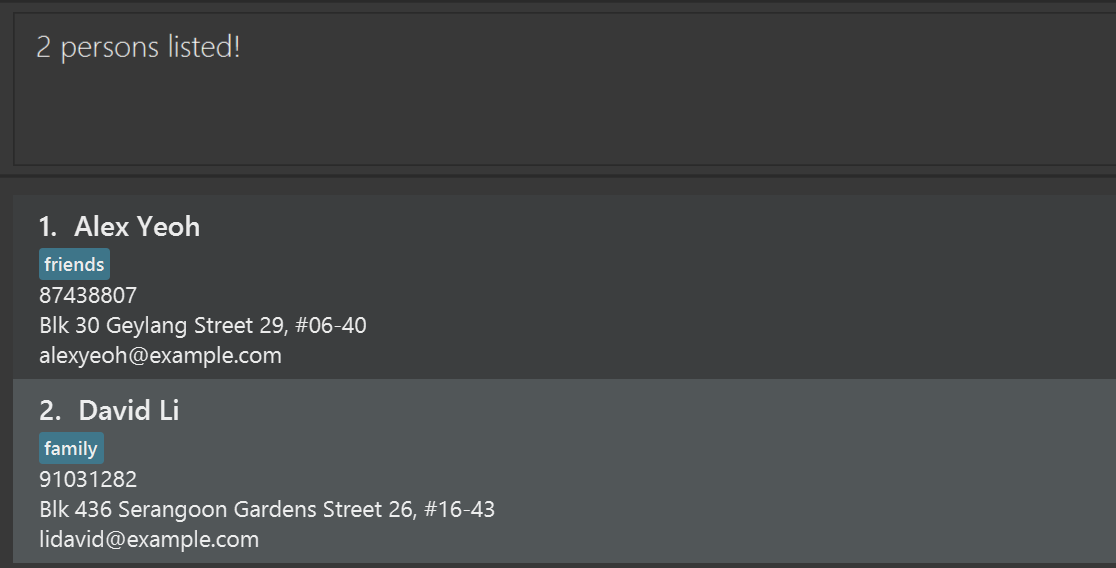

• findp n/Alex david returns Alex Yeoh, David Li

• findp no/paracetamol penicillin

Viewing a person : viewp

Displays the specified person with more details in the info panel.

Format: viewp INDEX

Examples:

• listp followed by viewp 2 opens the 2nd person in the list into the info panel.

Editing a person : editp

Edits an existing person in the PharmHub.

Format: editp INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [t/TAG]… [no/ALLERGY]…​ [ia/]

• Edits the person at the specified INDEX. The index refers to the index number shown in the last displayed person list. The index must be a positive integer 1, 2, 3, …​
• At least one of the optional fields must be provided.
• This command will not be able to add/delete orders to this person.
• Existing values will be updated to the input values.
• When editing tags or allergies, the existing tags or allergies of the person will be removed i.e adding of tags is not cumulative.
• You can remove all the person’s tags by typing t/ without specifying any tags after it.
• You can remove all the person’s allergies by typing no/ without specifying any allergies after it.
• If the editing causes the person to be allergic any of the orders belonging to them, a warning will be raised.
• The warning can be overridden by adding the ia/ to the command

Examples:

• editp 1 p/91234567 e/johndoe@example.com Edits the phone number and email address of the 1st person to be 91234567 and johndoe@example.com respectively.
• editp 2 n/Betsy Crower t/ Edits the name of the 2nd person to be Betsy Crower and clears all existing tags.
• editp 3 no/ Edits the allergies of the 3rd person to be empty.

Deleting a person : deletep

Deletes the specified person from PharmHub.

Format: deletep INDEX

• Deletes the person at the specified INDEX.
• The index refers to the index number shown in the last displayed person list.
• The index must be a positive integer 1, 2, 3, …​

Examples:

• listp followed by deletep 2 deletes the 2nd person in PharmHub.
• findp n/David followed by deletep 1 deletes the 1st person in the results of the find command.

---

Medicine Commands

Jump to TOC

Adding a new medicine : addm

Adds a new medication into PharmHub.

Format: addm m/MEDICINE_NAME

• The given name shouldn’t match the name or short form of any medicine in PharmHub.
• Medicine names are case-insensitive.

Example:

• addm m/Aspirin

Adding and Deleting short form : sfm

Adds or Deletes a short form from the specified medicine from PharmHub.

Format: sfm INDEX [m/SHORT_FORM] [d/]

• Index refers to index of medicine in the last displayed medicine list.
• At least one of m/ or d/ must be provided.
• If the d/ is not provided, the given short form will be added to the medicine at the specified INDEX.
  • The provided short form must not be empty and must not be same as any existing medicine name or short form in PharmHub.
  • Any existing short form of the medicine will be overwritten.
  • After this, the short form can be used interchangeably with the medicine name.
• If the d/ is provided, the short form(if any) of the medicine at the specified INDEX will be deleted.
  • Any short form provided using m/ will be ignored.

Example:

• sfm 1 m/pan
• sfm 1 d/

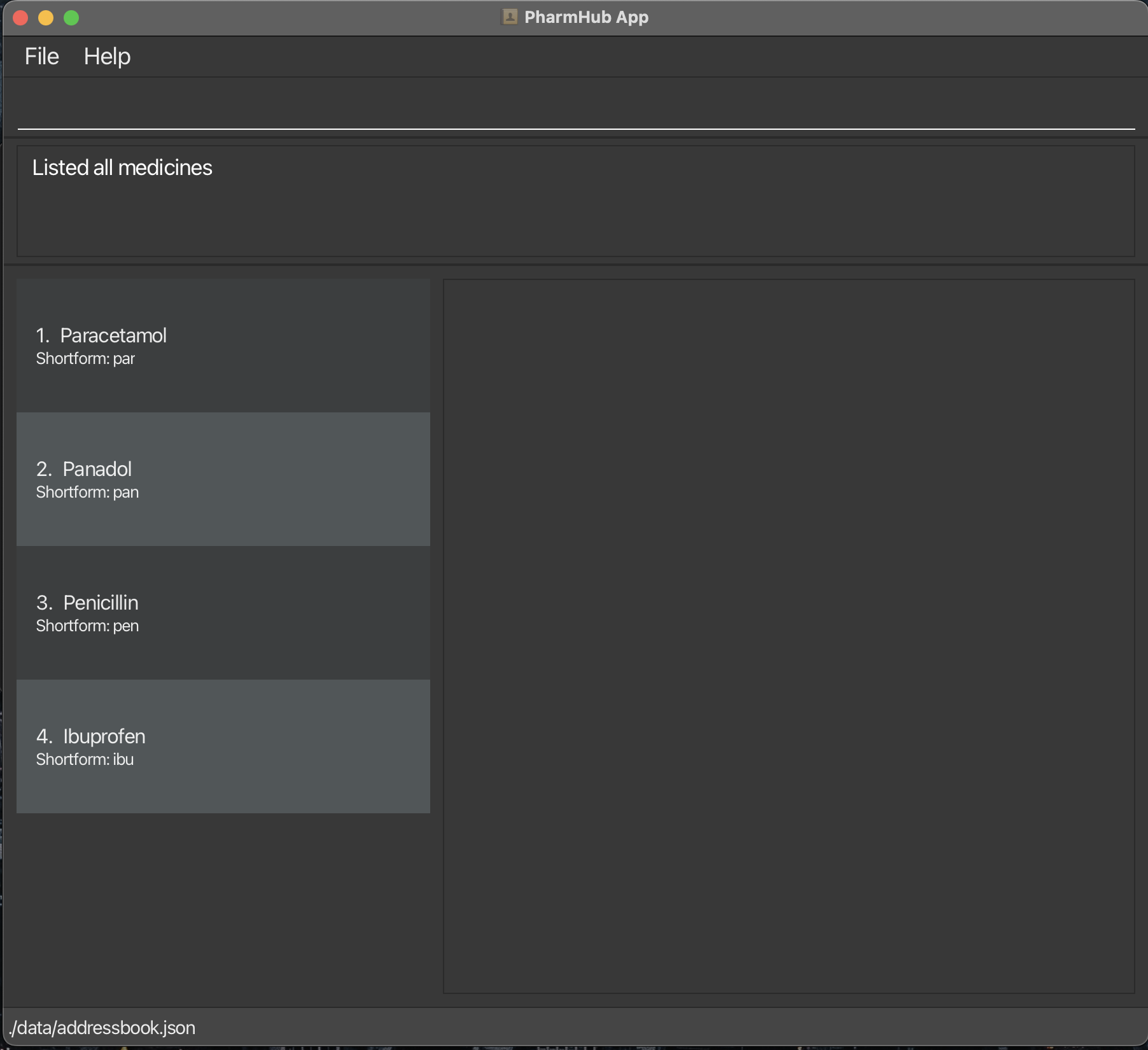

Listing all medicines : listm

Shows a list of all medicines in PharmHub.

Format: listm

Finding a medicine : findm

Finds all medicines whose name or short form contains any of the given keywords.

Format : Format: findm KEYWORD [MORE_KEYWORD]…

• The search is case-insensitive. e.g pan will match Panadol
• The medicine name and it’s short form is searched.
• Medicines matching at least one keyword will be returned (i.e. OR search). e.g. ol en will return Panadol, Ibuprofen

Examples:

• findm ol
• findm ol para

Deleting a medicine : deletem

Deletes the specified medicine from PharmHub.

Format: deletem INDEX

• Deletes the medicine at the specified INDEX.
• The index refers to the index number shown in the last displayed medicine list.
• The index must be a positive integer 1, 2, 3, …​
• The command will be blocked if there are existing orders with the specified medicine or persons allergic to the specified medicine.

Example:

• deletem 2

---

Order Commands

Jump to TOC

Adding a new order : addo

Adds a new order of the given medication(s) corresponding to a person into the system.

Format: addo INDEX o/ORDER_NUMBER m/MEDICINE_NAME [m/MEDICINE_NAME]…​ [ia/]

• Orders are created automatically having a status of pending.
• Orders can only be created for a person in the index range, and with known medicines.
• Orders created for persons with an allergy to any of the medications in the order will raise a warning.
• The warning can be overridden by adding the ia/ to the command

Parameters:

• INDEX - index of patient who is ordering the medicine as shown in the last displayed patient list.
• ORDER_NUMBER - the order number of this order specified by the invoice.
• MEDICINE_NAME - the name of medicine being ordered.

Examples:

• addo 1 o/618457 m/panadol
• addo 3 o/438756 m/par -> addo 3 o/438756 m/par ia/

Listing all orders : listo

Shows an interactive list of all orders in PharmHub.

Format: listo

Finding an Order : findo

Finds orders whose status and medicines match the given inputs.

Format: findo [s/STATUS] [m/MEDICINE_NAME]…

• The search is case-insensitive. e.g PANADOL will match Panadol, COMPLETED or CP will match Completed.
• Users can find orders based on either status or medicines or both.
• Status can only be Pending/PD Preparing/PR Completed/CP Cancelled/CC, any other inputs will be invalid.
• Medicine can be written both in their short form and full form. pan will match Panadol.
• Multiple Medicine can be used as input separated by a blank space and a Prefix /m, but only one status can be used.
• Orders that contain any one of the medication/Status will be shown.
• In the event both status and medicines are specified, only orders that have the given status AND has medicines containing any of the given medicine name substrings will be shown.

Examples:

• findo m/Panadol m/Ibuprofen returns all orders with either Panadol or Ibuprofen.
• findo s/pd m/Panadol returns all orders that is both PENDING and contains Panadol.
• findo s/pd m/pan m/pen returns all orders that is both PENDING AND contains one of pan or pen

Viewing an order : viewo

Shows the order in the info panel.

Format: viewo ORDER_NUMBER

Examples: viewo 123

Updating the status of an order : updates

Updates the status of the order to the designated status.

Format: updates INDEX s/STATUS

• Statuses: Pending (pd) -> Preparing (pr) -> Completed (cp) -> Cancelled (cc), in increasing hierarchy
• Statuses can only be updated upwards. Once the status of an order progresses to the next stage, it cannot go back.
• Statuses can be updated by skipping the hierarchy. Pending -> Cancelled
• Shorthands can be used in replacement of the full names of the statuses

Example:

• updates 1 s/completed
• updates 1 s/COMPLETED
• updates 1 s/cp
• updates 1 s/CP

Deleting an order : deleteo

Deletes the specified order from PharmHub.

Format: deleteo INDEX

Example: deleteo 2

---

Undoing an action : undo

Undoes the last data-modifying action.

Format: undo

• Limited to last 30 actions.
• Does not undo Ui views (eg. find, view commands).

Example:

• addp -> listp -> undo will undo the addp command

Redoing an undo action : redo

Negates the effect of the last undo.

Format: redo

• The undo command must have been the latest data-modifying command.
• Once a non-undo data-modifying command is executed, redoing undoes before that non-undo command is no longer possible

Example:

• addp -> undo -> addp -> redo will throw an error
• addp -> undo -> listp -> redo will redo the addp command successfully

Clearing all entries : clear

Clears all entries (Person, Orders, and Medicines) from PharmHub.

Format: clear

Exiting the program : exit

Exits the program.

Format: exit

Saving the data

PharmHub data are saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing the data file

PharmHub data are saved automatically as a JSON file [JAR file location]/data/pharmhub.json. Advanced users are welcome to update data directly by editing that data file.

---

Command Summary

Jump to TOC

Action	Format	Examples
Add Person	addp n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS [t/TAG] [no/ALLERGY]…​	addp n/James Ho p/22224444 e/jamesho@example.com a/123, Clementi Rd, 1234665 t/Diabetic t/Elderly no/aspirin
List People	listp	listp
Find Person	findp [n/KEYWORD [MORE_KEYWORDS]…] [p/PHONE_NUMBER] [e/EMAIL] [no/KEYWORD [MORE_KEYWORDS]…]	findp n/James Jake
View Person	viewp INDEX	viewp 1
Edit Person	editp INDEX [n/NAME] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [t/TAG]… [no/allergy]…​	editp 2 n/James Lee e/jameslee@example.com
Delete Person	deletep INDEX	deletep 3
Add Order	addo INDEX o/ORDER_NUMBER m/MEDICINE_NAME [m/MEDICINE_NAME]…	addo 3 o/438756 m/claritin
List Orders	listo	listo
Find Order	findo [s/STATUS] [m/MEDICINE_NAME]…	findo s/cp m/pen
View Order	viewo ORDER_NUMBER	viewo 12345
Update Order Status	updates INDEX s/STATUS	updates 1 s/cc
Delete Order	deleteo INDEX	deleteo 3
Add Medicine	addm m/MEDICINE_NAME	addm m/panadol
Add/Delete Short Form	sfm INDEX [m/SHORT_FORM] [d/]	sfm 1 m/met
List Medicine	listm	listo
Find Medicine	findm KEYWORD [MORE_KEYWORDS]…	findm ol
Delete Medicine	deletem INDEX	deletem 1
Undo	undo	undo
Redo	redo	redo
Clear	clear	clear
Help	help	help
Exit	exit	exit

---

Troubleshooting

Jump to TOC

FAQ

Q: The application is not running on my computer.
A: Refer to our Quick Start to ensure that you downloaded the correct java version.

Q: Will I lose my data if i exit the application?
A: No you will not. The data is stored on your computer and as long as you don’t delete the .jar file, your data will be stored.

Q: I accidentally deleted the PharmHub.jar file can i get my data back?
A: Unfortunately, the data cannot be recovered once the .jar file is deleted so make sure to keep it at a secure location.

Q: Is my patient data secure?
A: Yes, as long as your computer is secure no one else will be able to access the information.

Q: Is internet connection required?
A: Nope, PharmHub do not require internet connection.

Click here to view some issues posted by some of our users to see if it solves yours.
Click here to feedback on issues you faced that we didn’t answer on.

Common Errors

1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.

2. Common Error messages

   1. Unknown Command Error

      Check Command Summary and make sure the input command is a valid commmand.

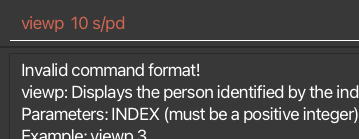

   2. Ivalid Command Format Error

      Either read the error message and edit accordingly or look at the command Features for detailed explanation.

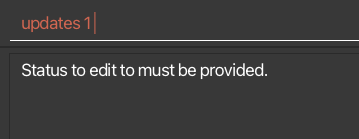

   3. Missing Field Error

      Check the command feature to identify the missing input.

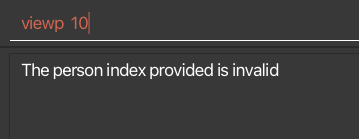

   4. Invalid Index Error

      Check through the display list and ensure a valid index is chosen. Index


   5. Invalid Input Error

      Refer to the fields to ensure the validity of the input fields.


   6. Invalid Chronological Order Error
      Ensure that the status is of correct chronological order.


---

Glossary

Jump to TOC

Term	Meaning
CLI	Command Line Interface(CLI) is a text based interface where users can input commands.
Command Terminal	A program which allows users to enter commands that the computer processes.
cd	The command used in command terminal to change directory.
Gui	Graphical User Interface(GUI) is the digital interface that the user interacts with.
Java	Java is a widely used programming language and is used in PharmHub.
Jar	Java Archive contains all of the various components that make up a Java application, in this case PharmHub.
Json	JavaScript Object Notation(Json) is a text format for storing data. It is used by PharmHub to store application data.
TOC	Table of Contents
